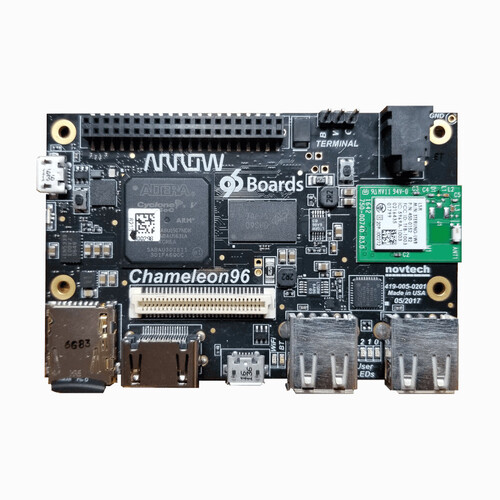

SBC - Chameleon96

Placa Chameleon96 ™, este bazat pe Intel® Cyclone V SoC FPGA, si este în conformitate cu specificatiile consumatorilor.

Specificatii:

Procesor - Intel Cyclone V SoC FPGA Dual ARM Cortex-A9 110K Logic Elements FPGA fabric
GPU - Graphics based on Intel Video Suite for FPGA
Video - 1080p@60fps HD video - HDMI interface
Memorie - 512MB DDR3L (support to 1GByte)
Audio - HDMI Audio, Bluetooth Audio, I2S 4Wire interface via expansion connector
Stocare - 4 to 64 GByte microSD
Bluetooth - Bluetooth 4.1
Wifi - WLAN 802.11 b/g/n 2.4GHz
Usb - One USB 2.0 OTG micro AB, Two USB 2.0 HOST
Hdmi - 1080p@60fps HD
Alimentare - +5V to +42VDC (exceeding 96Boards specifications)
Dimensiuni - 54 x 85
Sistem operare - Linux OS, terminal base (BuildRoot build) ,Linux OS, GUI (Yocto build)
Gpio - One 40-pin Low Speed (LS) expansion connector UART x2, SPI, I2S, I2C x2, GPIO x12 and DC power. One 60-pin High Speed (HS) expansion connector SDHC/SDIO, 2L-MIPI DSI, 2L-MIPI CSI, I2C, USB 2.0 HOST & USB 2.0 HOST HSIC The board can be made compatible with Arduino using an add-on mezzanine board.
